PCM (Protection 1Circuit Module)

• PCM is a circuit device that protects abnormal behavior including heat generation, ignition and explosion of battery pack by measuring and blocking voltage and current when charging and discharging Li-Ion batteries.

PCM Features

• 1) Protection of Over-charging

  : Blocking from overcharging than normal voltage of battery cells

• 2) Protection of Over-discharging

  : The ability to block discharge below the voltage of battery cells

• 3) Protection of Over-currents and Short Circuits

  : The ability to block charging and discharging from flowing above a certain current

• ※ Application

  - Mobile, Foldable, Cradle, Watch, VR / AR

SM (Smart Module) / BMU (Battery Management Unit)

• SM/BUM is a circuit device that provides the user with the basic protective action of battery packs and the remaining batteries amount using gas gauge IC.

SM/BUM Features

• 1) Basic Features of PCM

  : Over-charging, Over-discharging, Over-current and Short Circuit Protection

• 2) Measure Battery Status

  : Providing information on measurement of remaining amount and usage time by adding charging and discharging current

• 3) Features of Warning

  : Displaying function via status monitoring and provision when abnormal features are operated

• ※ Application

  - LapTop, Power Tool, e-Cigarette, Backup Bat. Bank, e-mobility

BMS (Battery Management System)

• BMS is a system that provides a large amount of cell balancing control, battery residue calculation, status data communication, and information display of battery via status monitoring of batteries.

Features of BMS

• 1) The basic features of PCM : over-charging, over-discharging, over-current and short circuit protection
• 2) Precise battery residual measurement and life prediction (SoC, SoH)
• 3) Battery status measurement and communication capabilities
• 4) Display battery information (Interfaces are provided such as cell, pack, etc.)
• 5) A large amount of balancing control between cells

• ※ Application

  - Garden Tool, Cordless HA, E-Bike, AGV/ AMR, ESS

Total Battery Pack Solution

• Cell selection optimized for customers’ demands and BMS & Pack designs

All Application

• Providing optimal solutions via mobile typed (e-Mobility and AMR), storage typed (UPS and ESS), and drive typed (EV and eVTOL) references.

Core Value of Battery Pack

• Safe & Durable, Efficient, Smart

• ※ Application

  - e-Bike, AGV / AMR, ESS, xEV, eVTOL

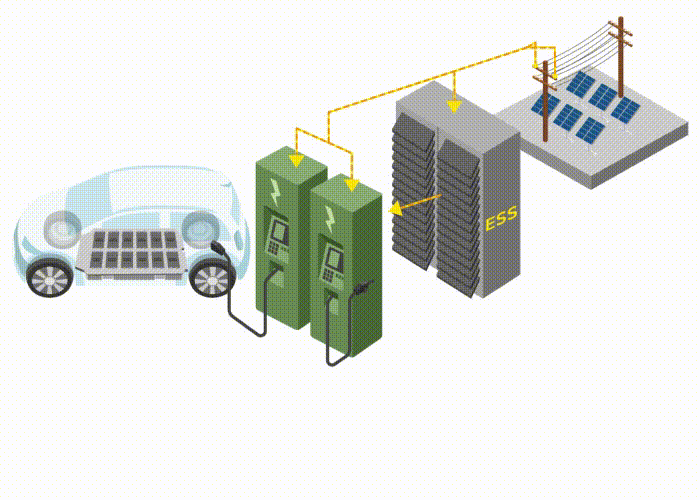

Maximizing EV Charging Station Efficiency

• Providing solutions to increase profitability and stabilize power at electric vehicle charging stations

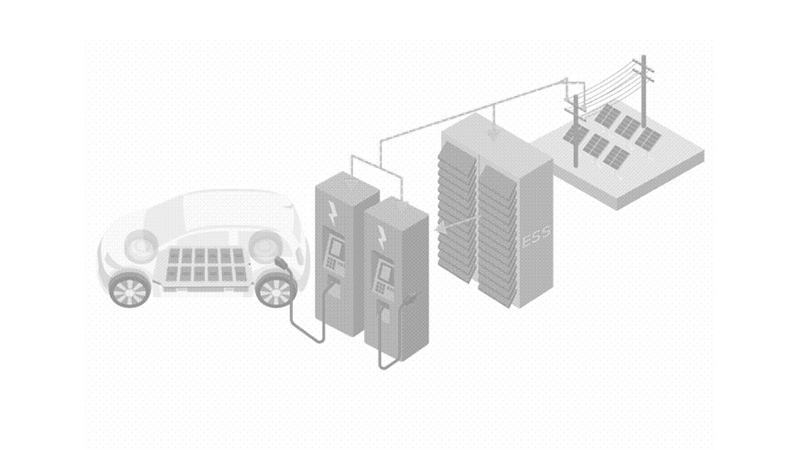

ESS for EV Charging Station

• ESS for the Construction of Distributed Power System

EMS(Electrics Manufacturing Service) for EV Charger

• Advanced manufacturing of controlling electric vehicle chargers and high voltage components
